CAD
|
||
Team 15: "Do It"
|
||
Our team created a Solidworks model to better visualize how we planned to use our space in our final assembly. It was a great opportunity for us to actually see our robot before integrating everything physically. This also worked well since most of our parts were Lasercammed anyways, so the printing of the pieces became simple. |
||

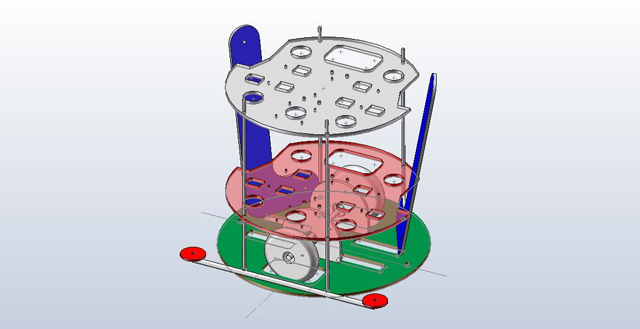

Isometric Closed View |
||

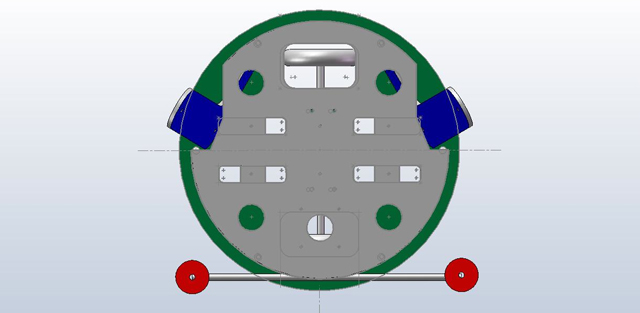

Top Closed View |
||

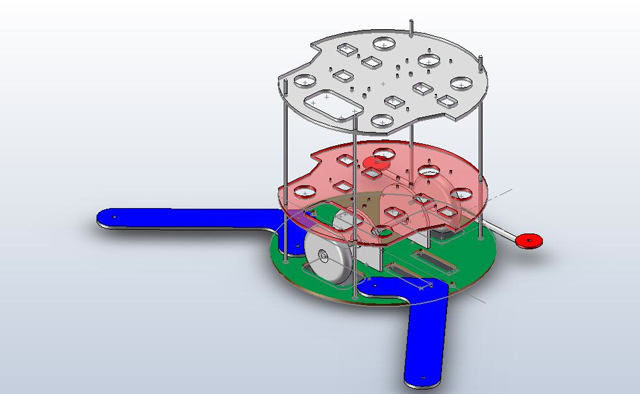

Isometric Open View |
||

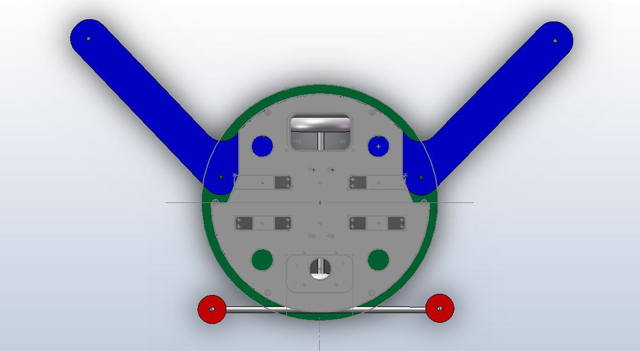

Top Open View |
||

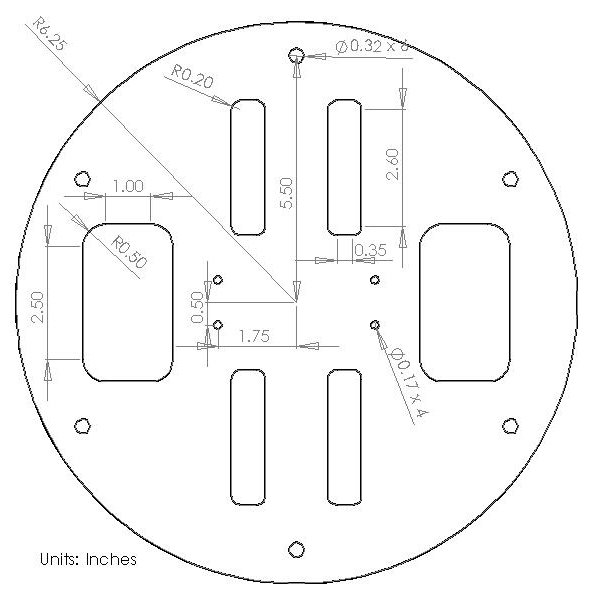

Base Drawing |
||

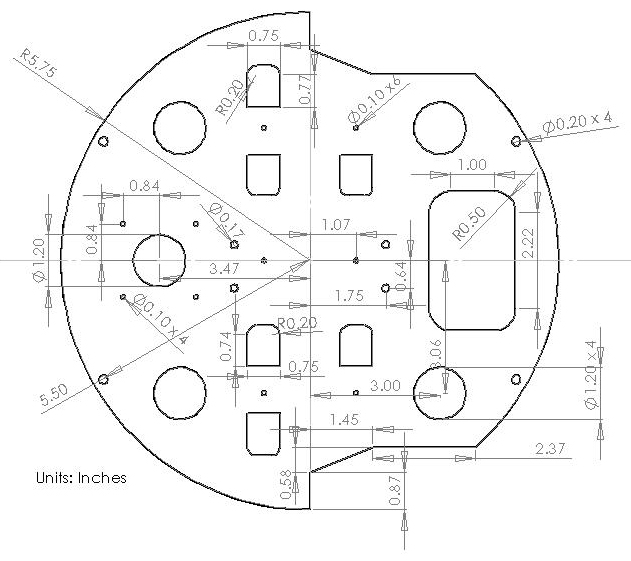

Middle Drawing |
||

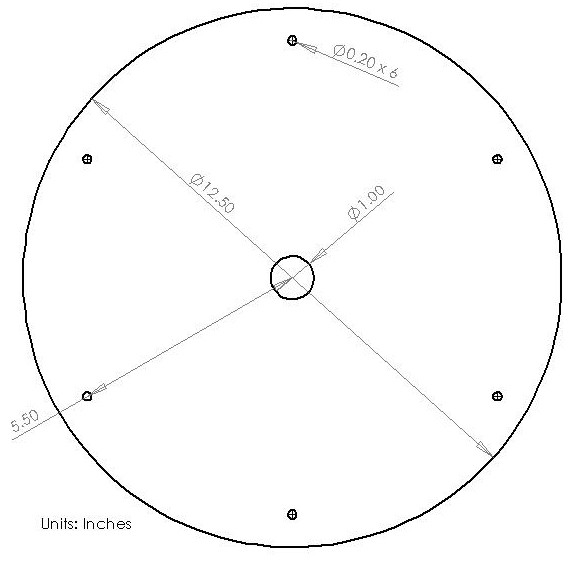

Top Drawing |
||

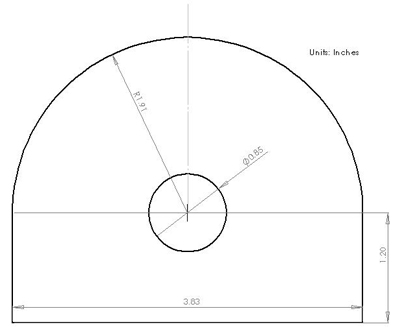

Strut Drawing |
||

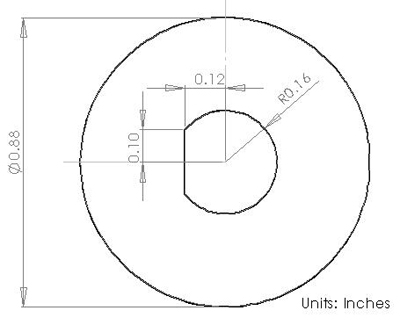

Wheel Insert Drawing |
||

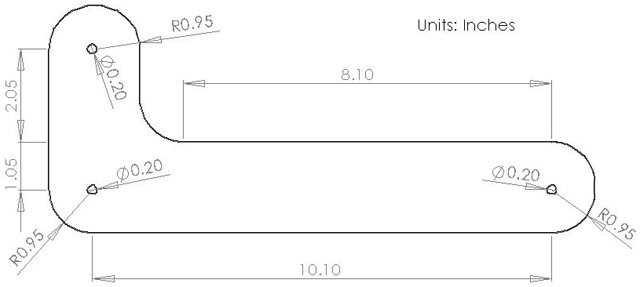

Arm Drawing |
||
Tong Zhang | Agustin Ramirez | Nina Joshi
|
||
last updated 3.12.09 |
