Interactive Nightlight

november 2008
objective: design and build an interactive nightlight that aids the process of putting children to bed
initial concept: a playful nightlight

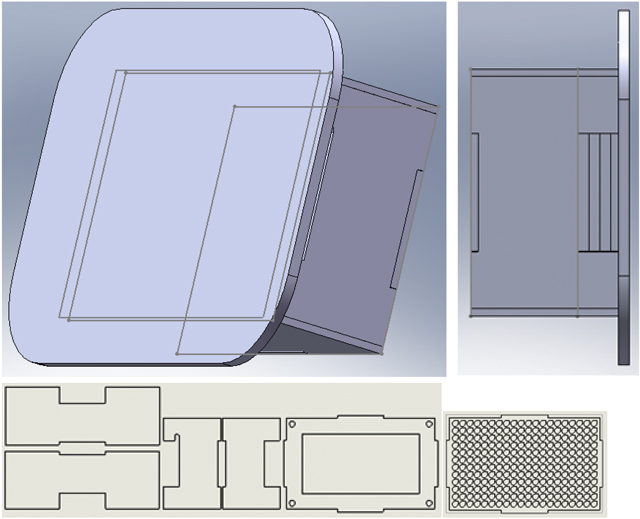

concept exploration: CAD model

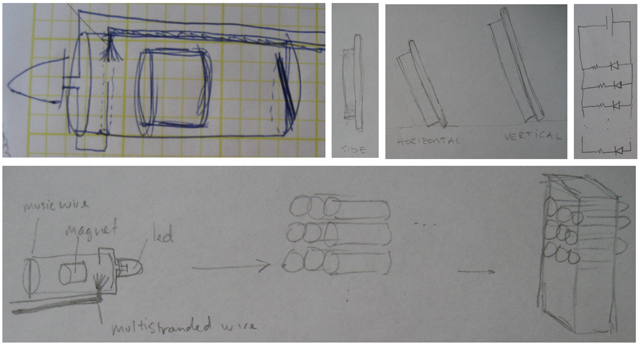

concept exploration: manufacturing plans

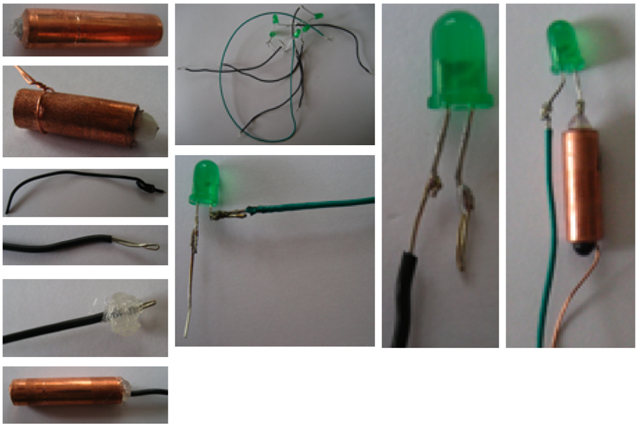

prototyping: LED electrical connection

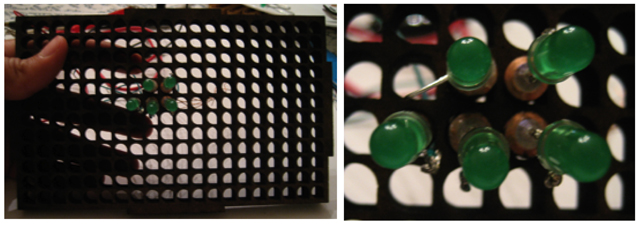

prototyping: vertical LED and magnet assembly testing


- light assemblies were not reliable due to interaction with other assemblies

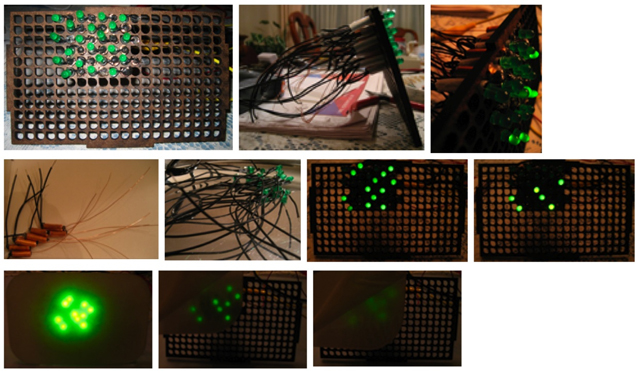

prototyping: horizontal LED separated from magnet assembly testing
- separating LEDs from magnetic switch allows for more reliability, but magnetic switches continue to interact with one another when assemblies are this close

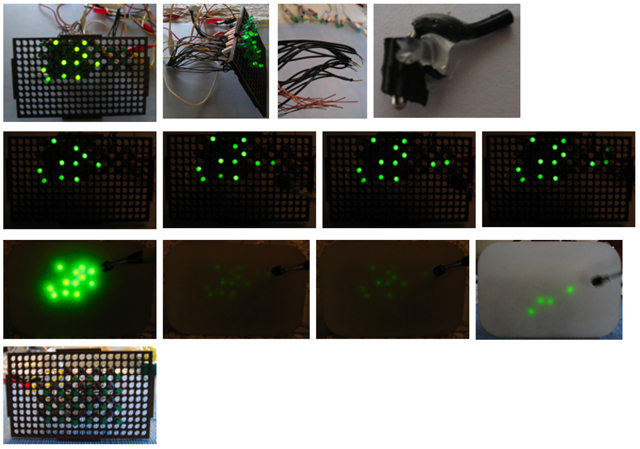

prototyping: diagonal LED separated from magnet assembly testing
- diagonal distance between LED and magnetic switch provides a nice balance between predictability and randomness for the user
primary challenges encountered during prototyping
  1. cumulative behavior of magnets
  2. induced magnets (LED, LED leg, resistors)
  3. magnetic flux terminates on intermediate magnetic materials (LEDs moved beside switch)
  4. anything that shields a magnet also interacts with its magnetism
  5. heat damages magnetism (limits on soldering near magnet)
  6. commercial tubing has poor tolerance

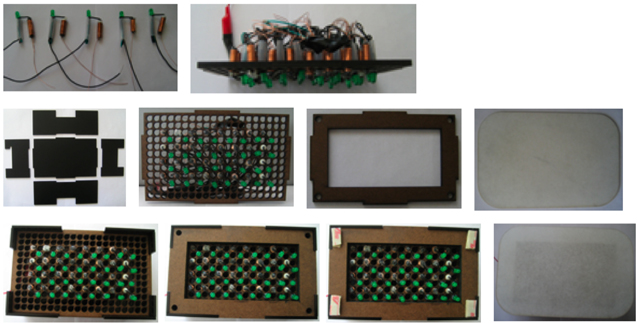

assembly: diagonal LED separated from magnet assembly testing

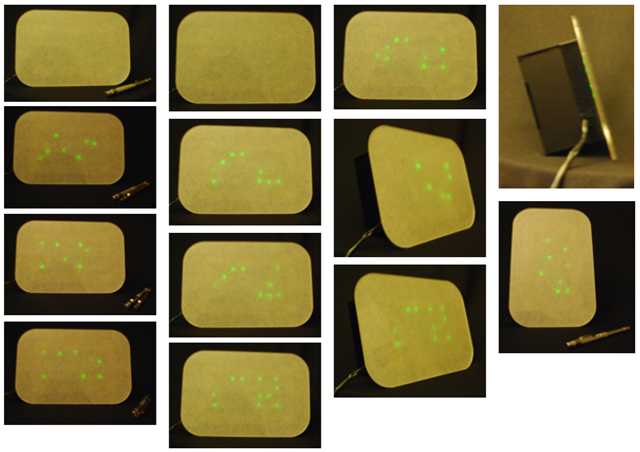

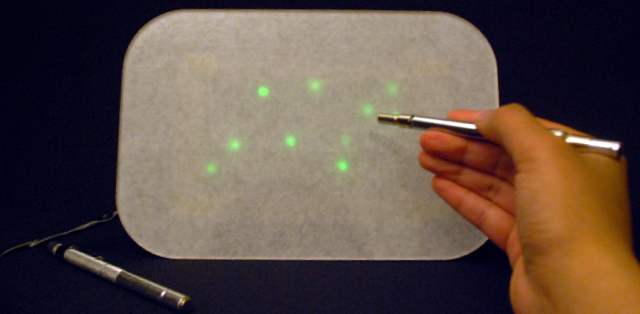

from concept to reality
a playful, interactive nightlight

Putting a child to bed is often a difficult part of the day. My interactive nightlight helps make the bedtime experience one that parents and children will look forward to. Using a simple wand, children and parents can draw upon a canvas to create interesting patterns and effects as varied as their imaginations - like stars sprinkled on the night sky, pixie-dust from Tinkerbell, fireflies, or even robot lights.

The nightlight is comprised of custom designed magnetic switches attached to LEDs. A certain amount of randomness provides surprises and delight for those playing with it.
